CUSTOM SOLUTIONS.

WITH NO LIMITATION

Performance

Excellence is our standard; ALLURE’s standard of excellence exceeds the highest requirements of architects. Our window systems are energy-efficient, offering thermal insulation, acoustic effectiveness, and burglar resistance. ALLURE’s combination of glass and material-mixed frames meets the demands of modern architecture effortlessly.

    • certified under many tests

    • certificates from multiple institutes

    • NFRC certified glass types

    • hurricane impact certifications

    • rollers and surface made of stainless steel

    • high load-bearings wheels facilitate the effortless handling of heavy sliders

    • Uf-value 0,9 W/m²K (0.16 BTU(th)/h ft² °F) · Uw-value below 0,8 W/m²K (0.14 BTU(th)/h ft² °F) possible

    • frame exclusively made of 100% thermally broken fiber glass material

    • no condensation up to -10°C (14 °F) outside, +20°C (68 °F) inside

    • mold-free, even in swimming pool areas

    • no corrosion, best for ocean front application

    • only 1/3 of the extension compared to aluminum

    • 2-Pane Glass overall IGU thickness: 1 7/16” (36 mm)
      Usual glass composition: 5/16” - 3/4” - 5/16” (8/20/8)

    • 3-Pane Glass overall IGU thickness: 2” (50 mm)
      Usual glass composition: 5/16” - 15/32” -15/64” -15/32” -5/16” (8/12/6/12/8)

    • adjustable to a variety of structural conditions

    • easy and safe drainage thanks to the special geometry of the fiberglass profile

    • special sealing technology in the joint area of the frame

    • 2-4 brush sealing

    • 2 EPDM stopper seal

Drainage System

The ALLURE drainage system stands out as a distinctive feature in the field of frameless sliding windows that is seamlessly adaptable to a diverse array of structural configurations. With its profile geometry and one-piece manufacturing process, there is no risk of profile leakage. Additionally, the rear rails and chambers can be effectively drained without problems. For added versatility, the system’s inherent drainage mechanism can be enhanced with a range of supplementary attachment channels.

Sill integrated Drainage

Drainage via nozzles or weep holes benefits from the fiber core frame being fabricated as one piece, resulting in smooth edges in the water flow area due to precision milling. There is no need to overcome barriers (insulation bars) for the water and it can be discharged to the outside in a controlled manner. Nozzles can be connected to the in-house plumbing drainage system. In the case of drainage with caps, the water will drain into the soil.

Nozzle

Weep Hole

Sub-drainage

External Drainage Option

In addition to ALLURE’s many other features, the track system can be customized with an external linear drain gutter depending on jobsite (e.g. heavy water impact), zoning, and structural requirements. ALLURE offers stainless steel gutter systems in two widths 3 ½” and 1 ½”. Both external drainage options are attached and fully matched to the window track system. The gutter can easily be removed for maintenance.

Gutter width 3 ½”

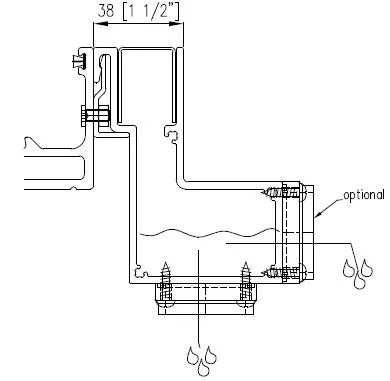

Gutter width 1 ½”
